IF104-Fixed Wire Harness Fork – iFixture | U-Head Fixture

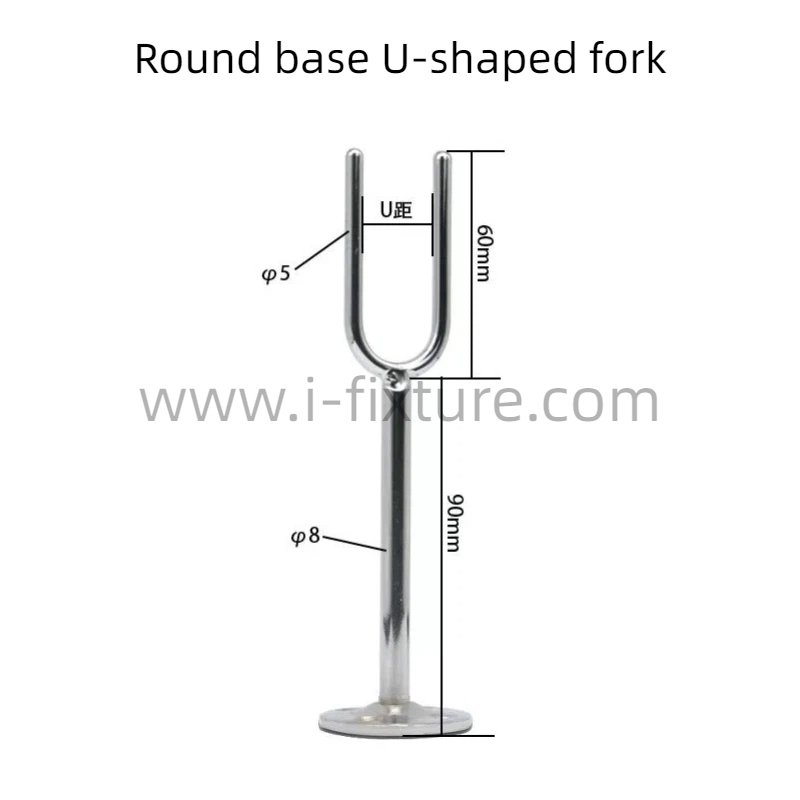

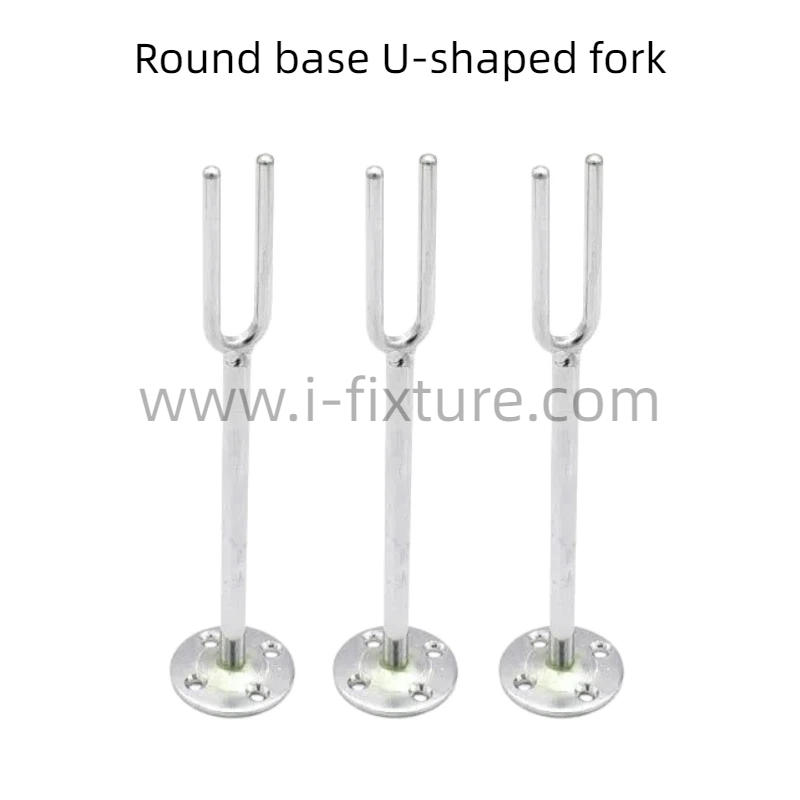

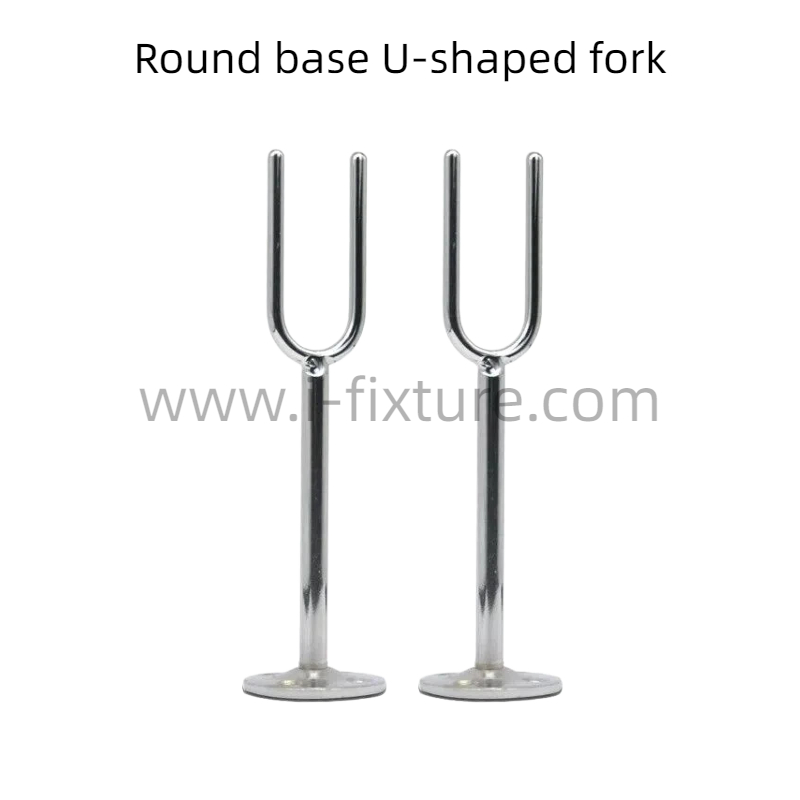

Fixed Wire Harness Fork is designed for stable wire positioning during harness assembly. Fixed Wire Harness Fork combines a U-shaped head with a round base for secure and consistent harness support.

The integrated structure simplifies fixture installation and reflects the expertise of a China wire harness fixture manufacturer. It reduces loose components during production, helping improve assembly efficiency and consistency. As a custom wire harness jig supplier, we provide solutions suitable for Positioning Fixtures, Terminal Processing, and Bending Fixtures, supporting different wire harness assembly requirements.

Made from electroplated iron. Zinc, nickel, and chromium plating options are available. The surface provides good corrosion resistance and supports long-term industrial use.

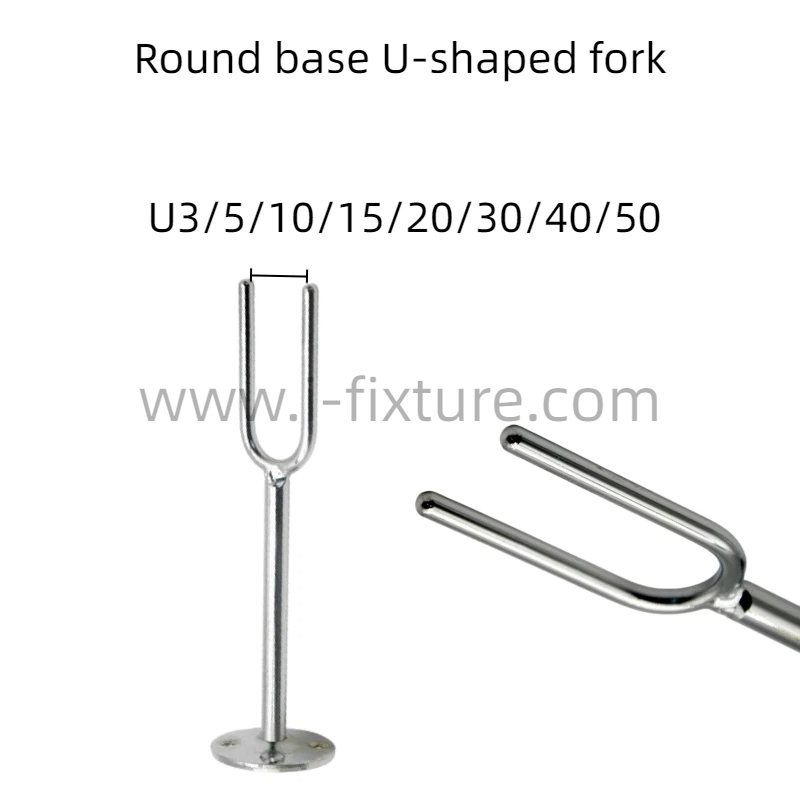

Standard U-head sizes include U3, U5, U10, U15, U20, U30, U40, and U50. Custom specifications are available for different Wire Harness Fixtures and Tooling Fixtures.

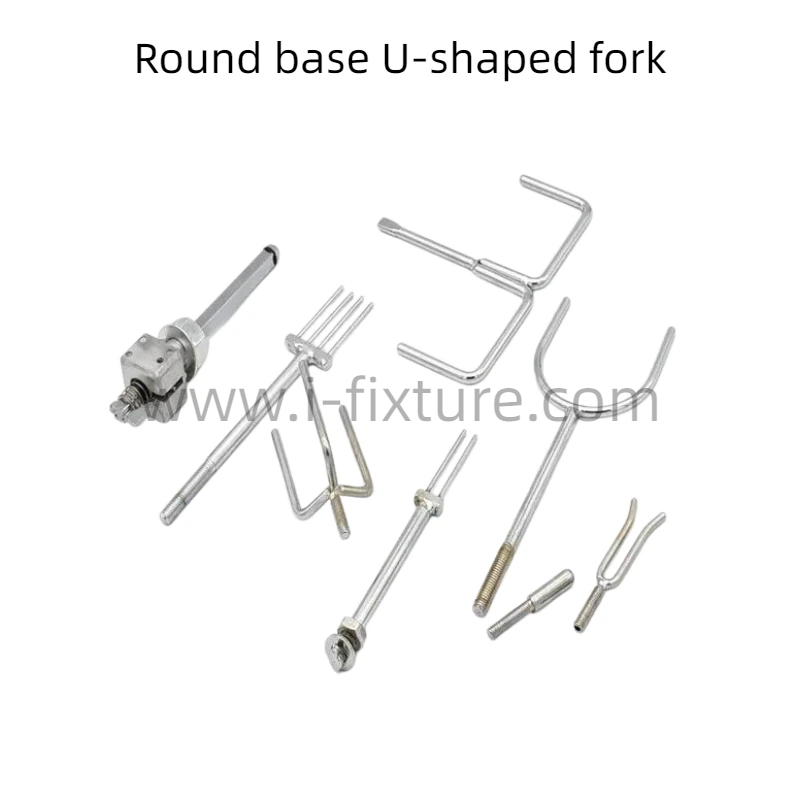

As a wire harness tooling supplier, iFixture provides Wire Harness Forks, Wire Harness Clamps, Wiring Fixtures, Cabling Fixtures, and Wire Harness Special Tools.

The fork works as a wire harness clamp for reliable harness retention and routing. It supports Lifting Positioning and Continuity Testing processes when integrated into suitable tooling.

It is suitable for Automotive Wire Harnesses, Home Appliance Wire Harnesses, Motorcycle Wire Harnesses, Two-Wheeled Vehicle Wire Harnesses, Engineering Machinery Wire Harnesses, Industrial Equipment Wire Harnesses, Medical Equipment Wire Harnesses, Communication Equipment Wire Harnesses, Consumer Electronics Wire Harnesses, New Energy Industry Wire Harnesses, Aerospace Wire Harnesses, Rail Transit Wire Harnesses, Marine and Offshore Engineering Wire Harnesses, Security Equipment Wire Harnesses, LED and Lighting Industry Wire Harnesses, and Special Equipment Wire Harnesses.

Designed as a wire harness poka yoke solution, it helps improve positioning consistency, reduce assembly errors, and support efficient Wire Harness Assembly.
