IF074-Cuboid Fixation Pin – iFixture | Tooling Board Positioning Support

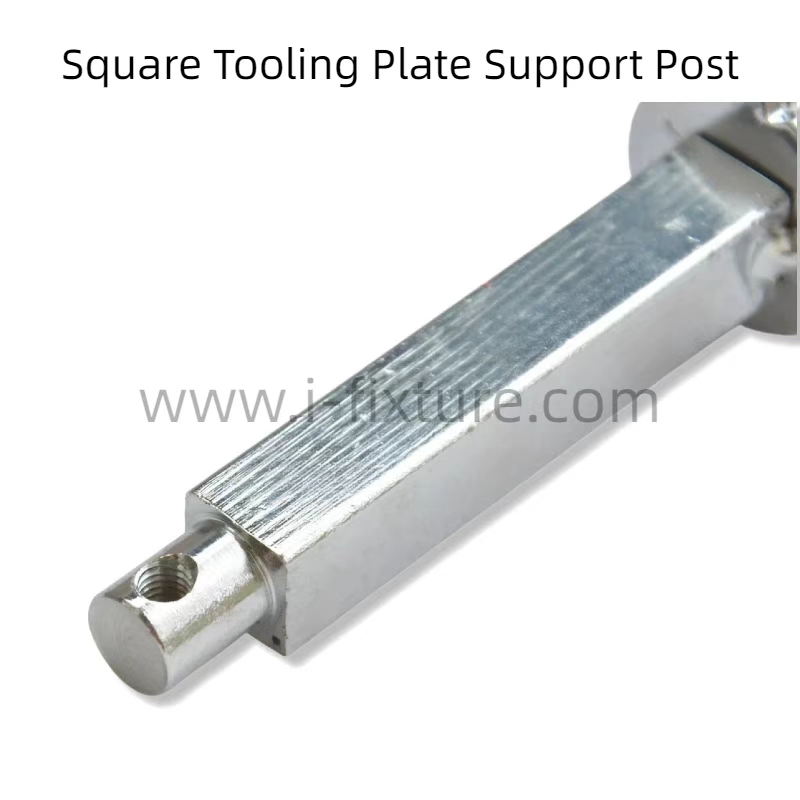

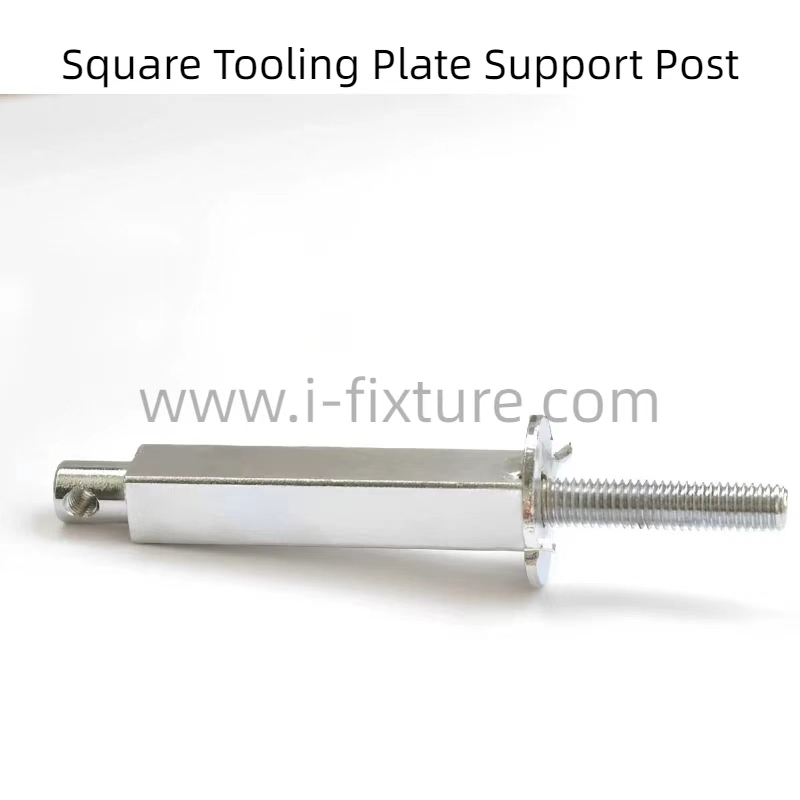

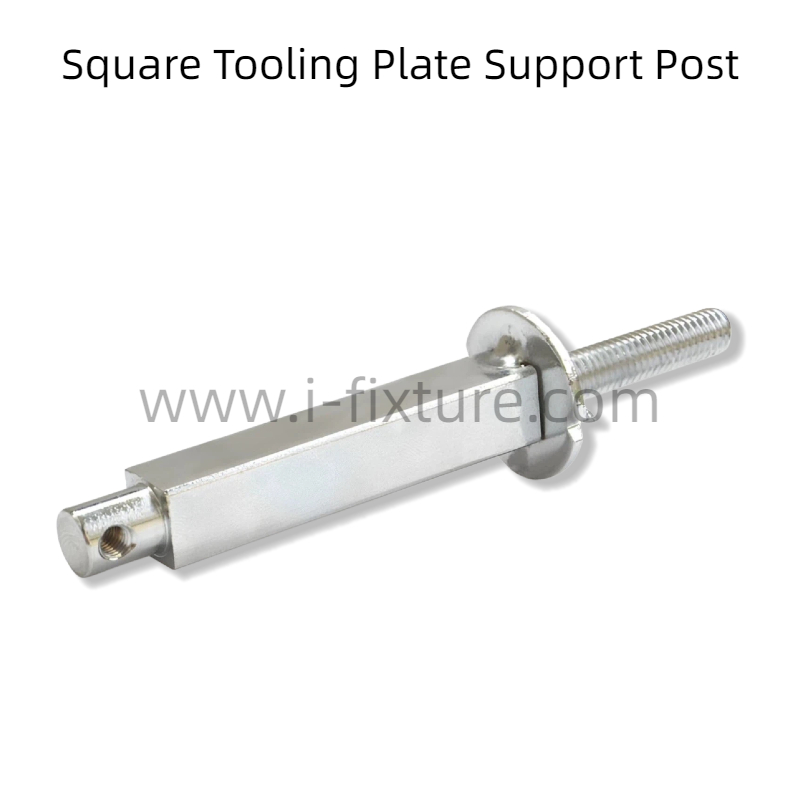

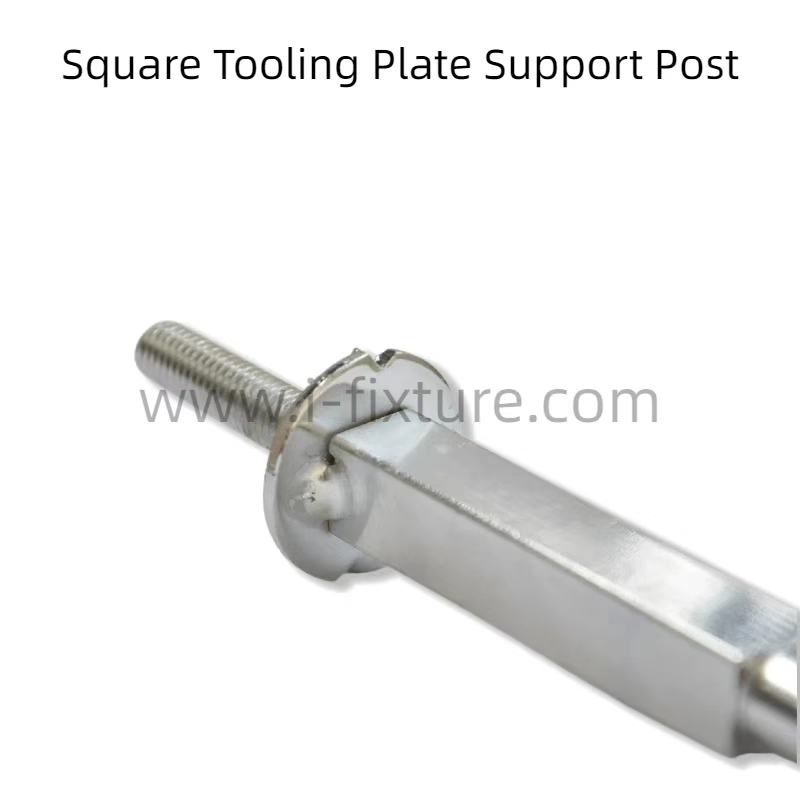

Cuboid Fixation Pin is engineered for wiring support and fixed positioning on tooling boards. Cuboid Fixation Pin is widely used to stabilize wire routing and improve positioning accuracy during wire harness production.

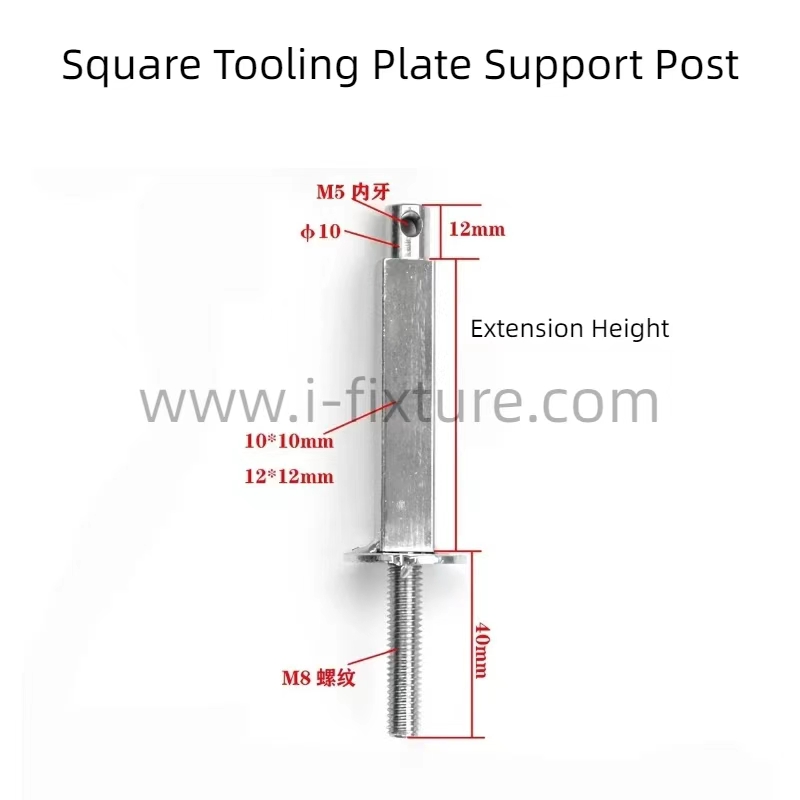

High-strength electroplated iron and stainless steel are selected to ensure durability and corrosion resistance. Therefore, stable performance can be maintained in demanding manufacturing environments. Multiple heights, including H50mm, H55mm, H60mm, H65mm, H70mm, H75mm, H80mm, H85mm, and H90mm, are provided to accommodate different tooling requirements.

Reliable positioning can be achieved throughout Wire Harness Fixtures, Automotive Wire Harness Fixtures, Wire Harness Tooling Fixtures, Tooling Fixtures, Wiring Fixtures, Cabling Fixtures, Wire Harness Forks, Wire Harness Clamps, Wire Harness Special Tools, and Wire Harness Assembly applications. As a result, wiring layouts can be organized more efficiently.

Furthermore, consistent support can be provided during Terminal Processing, Positioning Fixtures, Lifting Positioning, Bending Fixtures, and Continuity Testing operations. Assembly accuracy can be improved, while production errors can be effectively reduced.

The fixation pin is widely applied in Home Appliance Wire Harnesses, Automotive Wire Harnesses, Motorcycle Wire Harnesses, Two-Wheeled Vehicle Wire Harnesses, Engineering Machinery Wire Harnesses, Industrial Equipment Wire Harnesses, Medical Equipment Wire Harnesses, Communication Equipment Wire Harnesses, Consumer Electronics Wire Harnesses, New Energy Industry Wire Harnesses, Aerospace Wire Harnesses, Rail Transit Wire Harnesses, Marine and Offshore Engineering Wire Harnesses, Security Equipment Wire Harnesses, LED and Lighting Industry Wire Harnesses, and Special Equipment Wire Harnesses.
