IF112-Wiring Block Fixture | 25-Position Wire Harness Organizer | iFixture

What Is This Product?

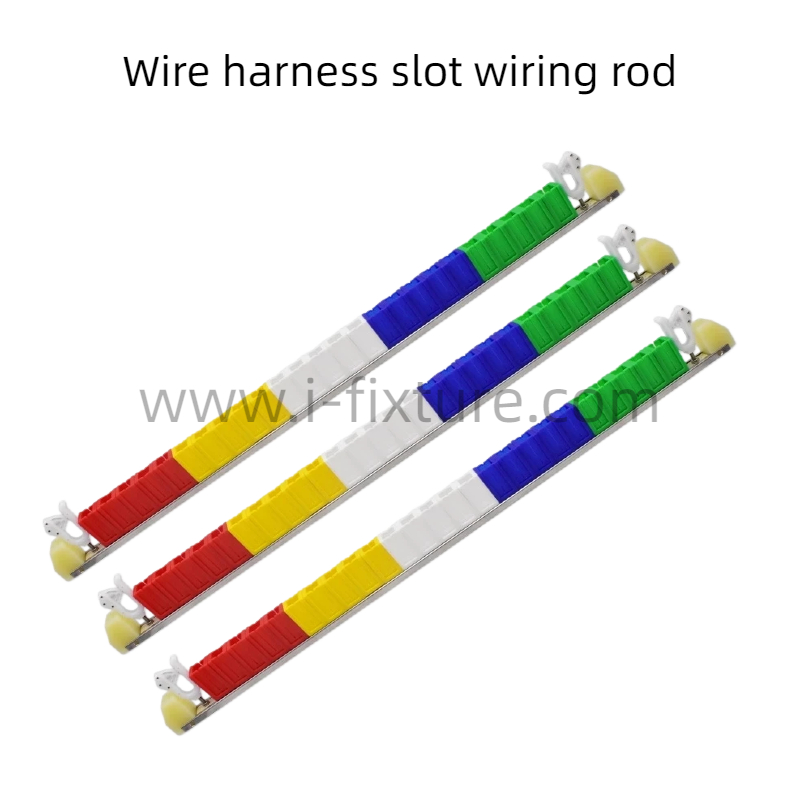

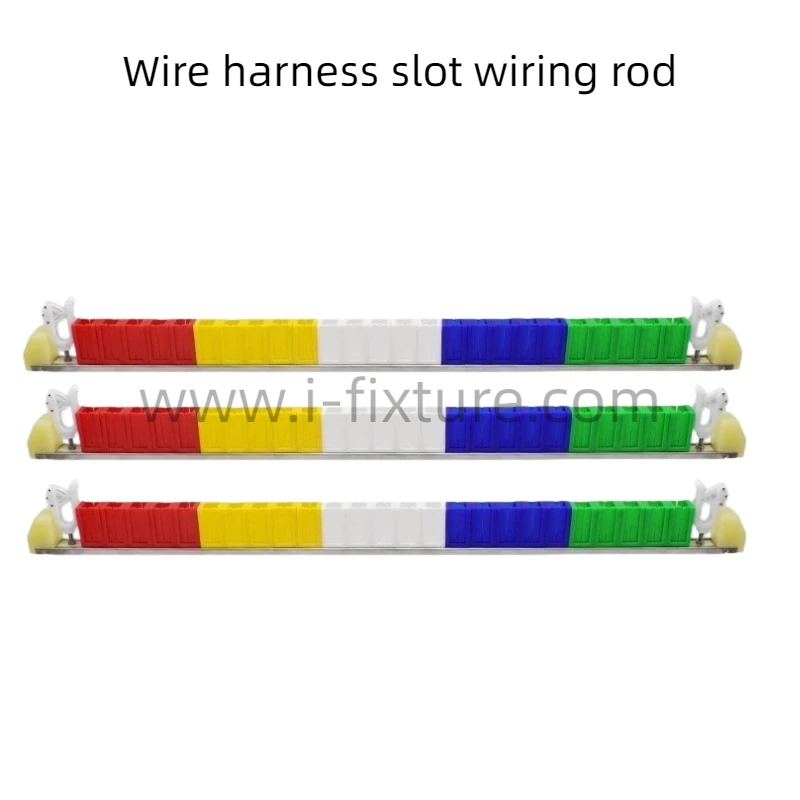

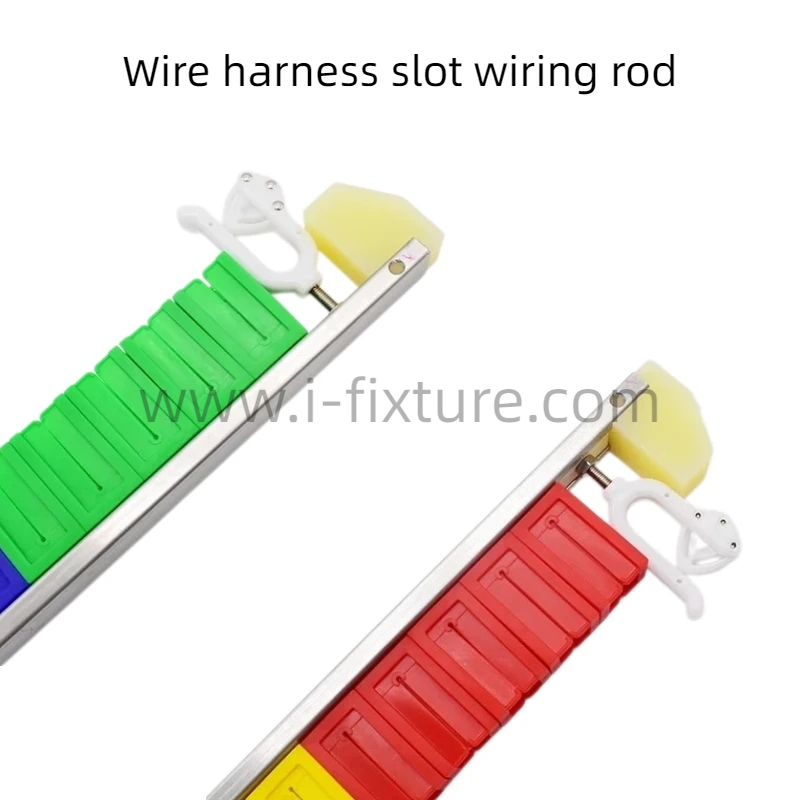

The Wiring Block Fixture is designed for wire harness organization.
Up to 25 wire positions are provided.
Wires are separated and held in an organized layout.
Therefore, wire scattering can be reduced during assembly.
The product is made from plastic.
Custom configurations can be developed when required.

What Is It Used For?

The fixture is mainly used for Wire Harness Assembly.
Wire positions can be maintained during production.
Cable movement can be reduced during manual operations.
As a result, a cleaner assembly process can be supported.
It can also be integrated with Positioning Fixtures, table components, and a modular fixture system.

Which Wire Harness Processes Can It Support?

The product can be used during wire positioning and organization.
It can support routing preparation before Terminal Processing.
It can also be used with Continuity Testing processes.
For specific production layouts, it can be combined with Wire Harness Clamps, Wire Harness Forks, and other Tooling Fixtures.

Which Industries Can Use It?

The product can be applied to various wire harness industries.
Typical applications include Automotive Wire Harnesses, Motorcycle Wire Harnesses, Two-Wheeled Vehicle Wire Harnesses, Home Appliance Wire Harnesses, Industrial Equipment Wire Harnesses, and New Energy Industry Wire Harnesses.
It can also be used for Medical Equipment, Communication Equipment, Consumer Electronics, Aerospace, Rail Transit, Marine, Security, LED and Lighting, and Special Equipment wire harnesses.

Can It Be Customized?

Yes.
Custom dimensions, positions, and layouts can be provided.
The design can be adjusted according to the customer’s harness structure.
As a China wire harness fixture manufacturer, iFixture can support customized wire harness tooling requirements.
Samples can be developed based on drawings or application requirements.
