IF116-PVC Wire Harness Tray | iFixture

What Is This Product?

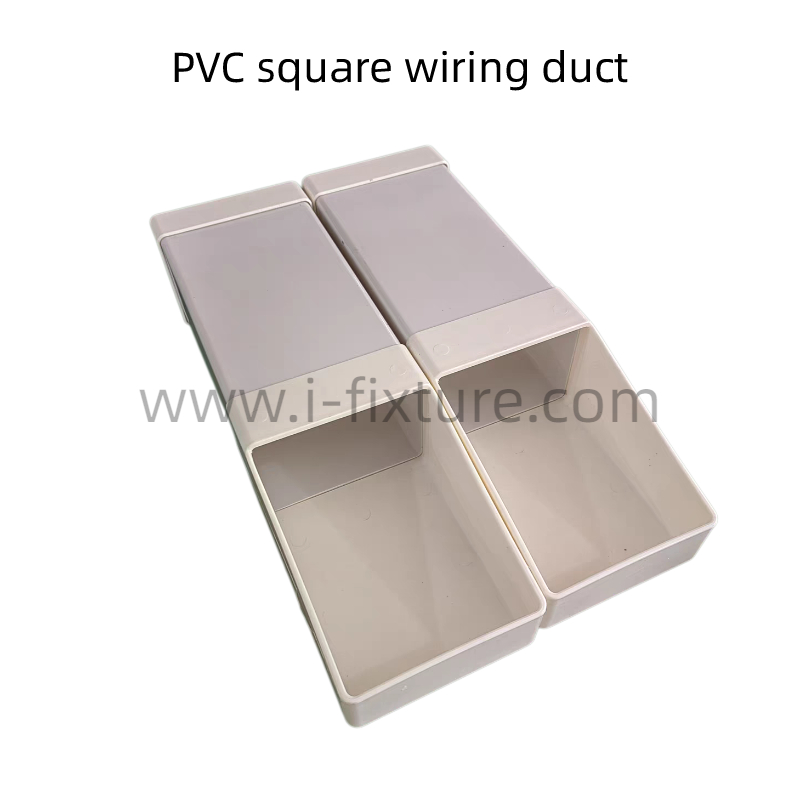

The Wire Harness Tray provides a practical solution for temporary wire harness processing, pre-assembly, stacking, and in-process handling. It helps operators organize harnesses and keep workstations tidy.

What Are the Main Features?

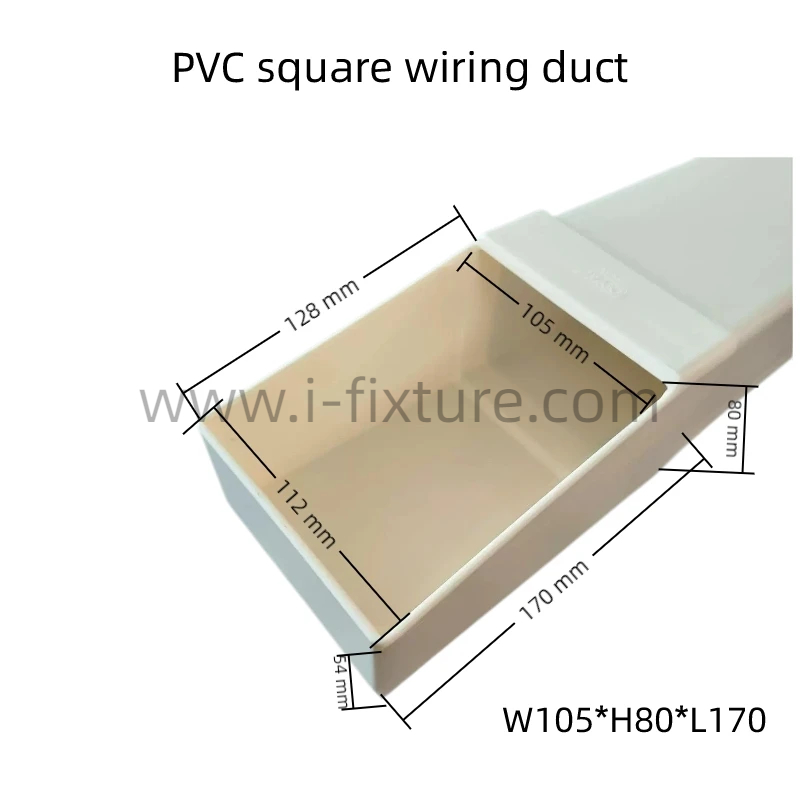

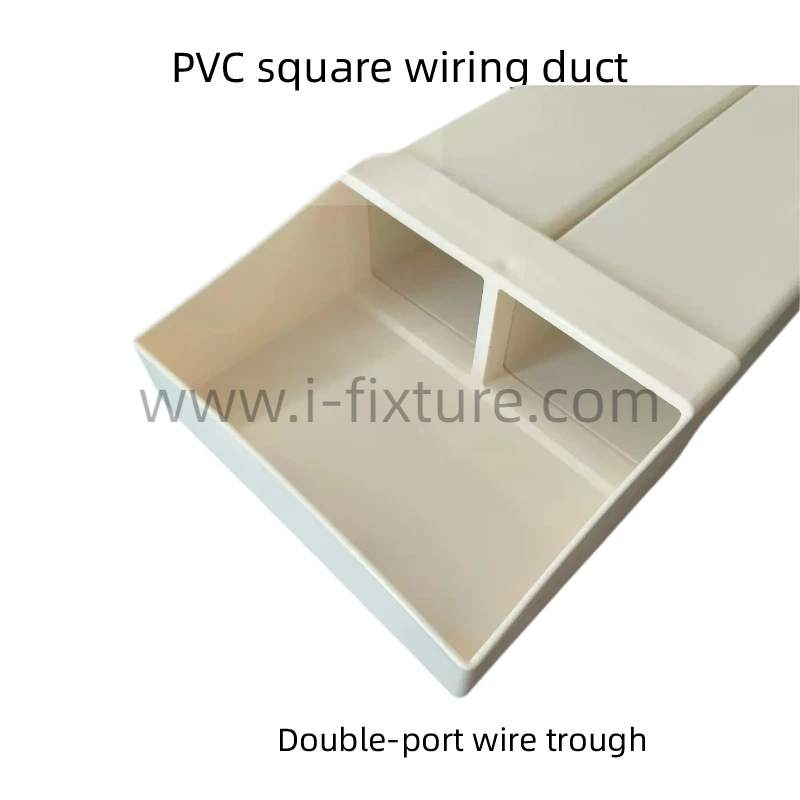

A square duct structure is provided. Two sizes are available: 105 × 75 mm and 80 × 75 mm. The plastic construction is suitable for general workshop handling. Therefore, the tray can be incorporated into suitable wire harness assembly workflows.

How Is It Used?

The Wire Harness Tray helps operators organize harnesses between production stages. For example, teams can use it alongside wire harness clamps, positioning fixtures, tooling fixtures, and table components. As a result, it supports a more organized assembly workflow.

Which Industries Can Use It?

It can be considered for automotive wire harnesses, home appliance wire harnesses, motorcycle wire harnesses, industrial equipment wire harnesses, and consumer electronics wire harnesses. Other applications should be evaluated according to the harness size and process requirements.

Can It Be Integrated Into a Workstation?

Yes. It can be considered for suitable workbenches and modular fixture systems. However, final selection should be based on the harness dimensions, handling method, and workstation layout.
