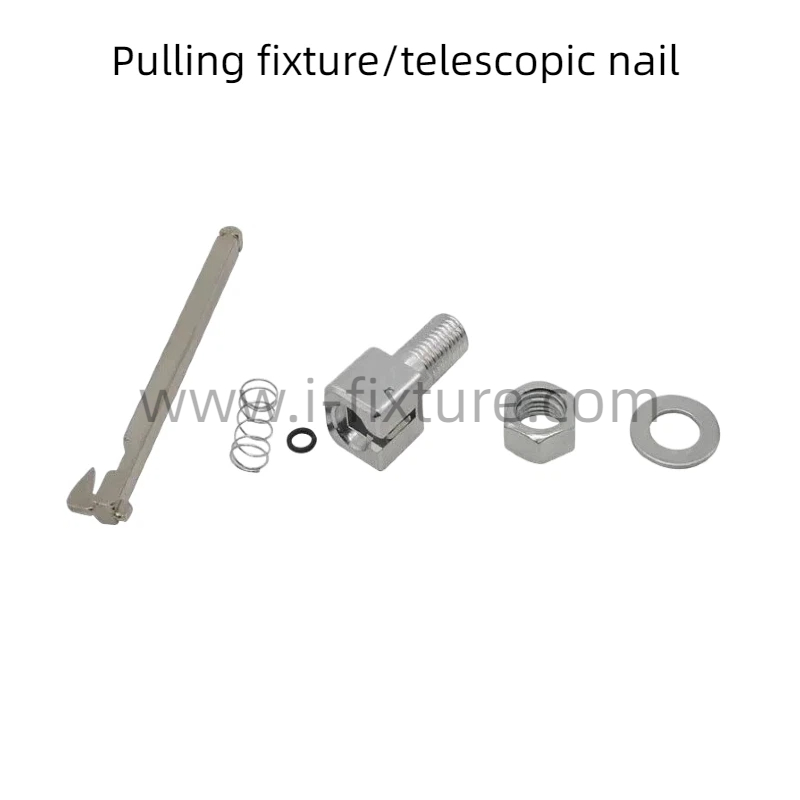

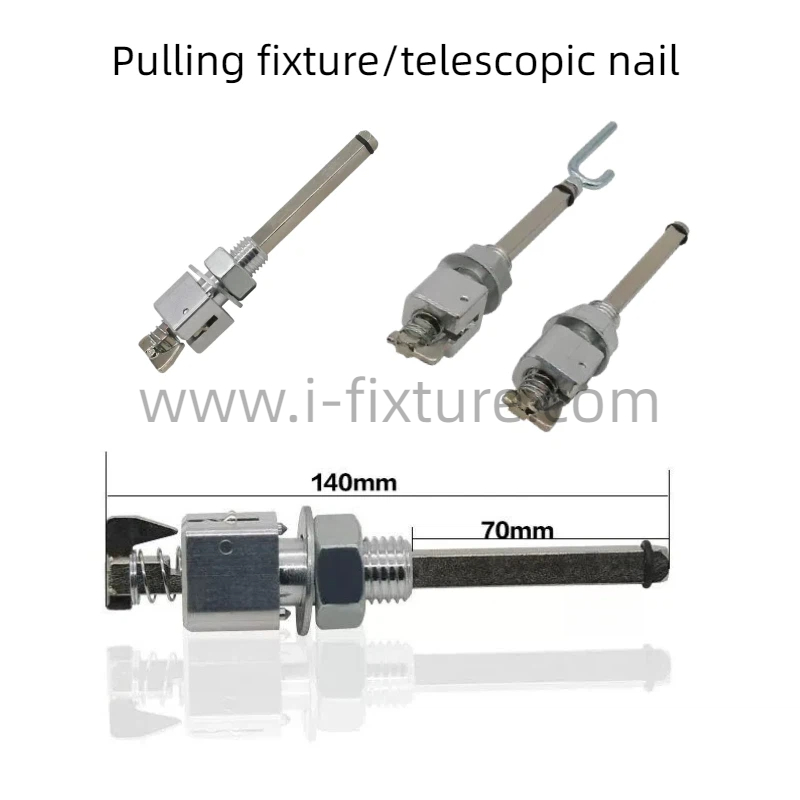

IF042-Telescopic Nail | Automotive Wire Harness Fixture

This wire harness fixture supports precise automotive harness positioning. It features a telescopic design for flexible height adjustment. Also, aluminum and electroplated iron provide a strong body. The fixture suits boards above or below 12mm. Moreover, 123mm, 130mm, 140mm and custom sizes fit different needs. This wire harness fixture improves routing accuracy and assembly efficiency.

Material: Aluminum profile + electroplated iron
Electroplating: Nickel plating
Height: Standard sizes 123，130, 140mm
(Custom sizes available)”

“long:123mm,143mm,153mm Suitable for boards thicker than 12mm.
short:123mm,143mm,153mm Suitable for boards up to 12mm thick”

Inquiry

This professional telescopic nail acts as a stable automotive wire harness fixture for auto wiring production.

It also works as a practical wire harness jig for flexible harness positioning tasks.
The tool fits dense branch areas and main line harness layout scenarios.
Operators can lower the fixture freely to simplify daily wiring operations.
Premium aluminum profile and electroplated iron compose its sturdy body.
Fine nickel plating enhances surface smoothness and corrosion resistance for long service life.
It offers multiple standard height options including 123mm, 130mm and 140mm. Long and short styles in 123mm, 143mm, 153mm fit different board thicknesses.
It adapts to boards above 12mm and boards within 12mm. Custom size support meets diverse customized harness assembly demands.
It delivers accurate positioning tooling and assists efficient end processing in wire harness production.
