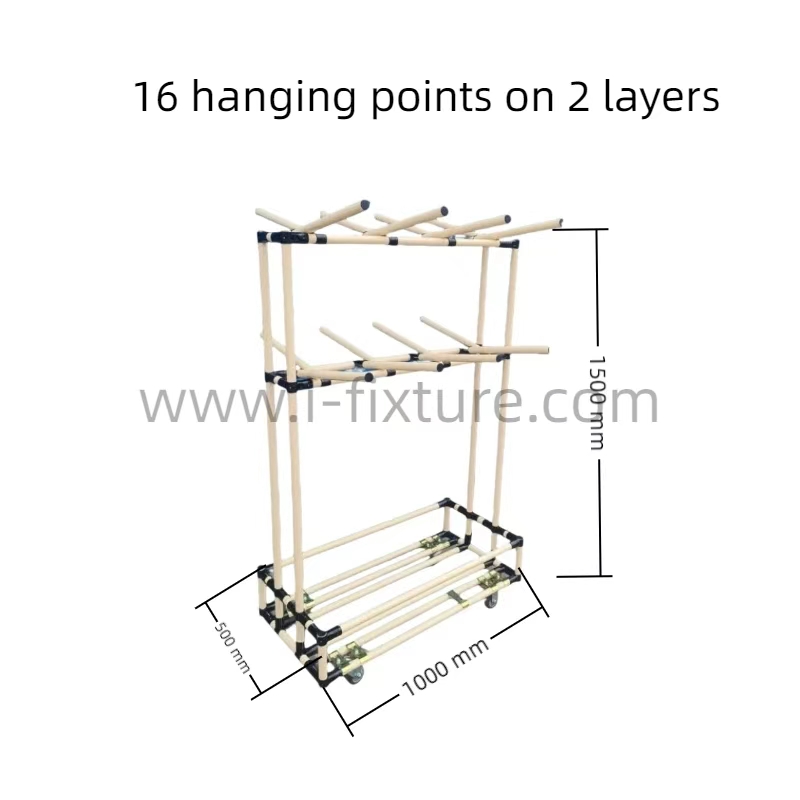

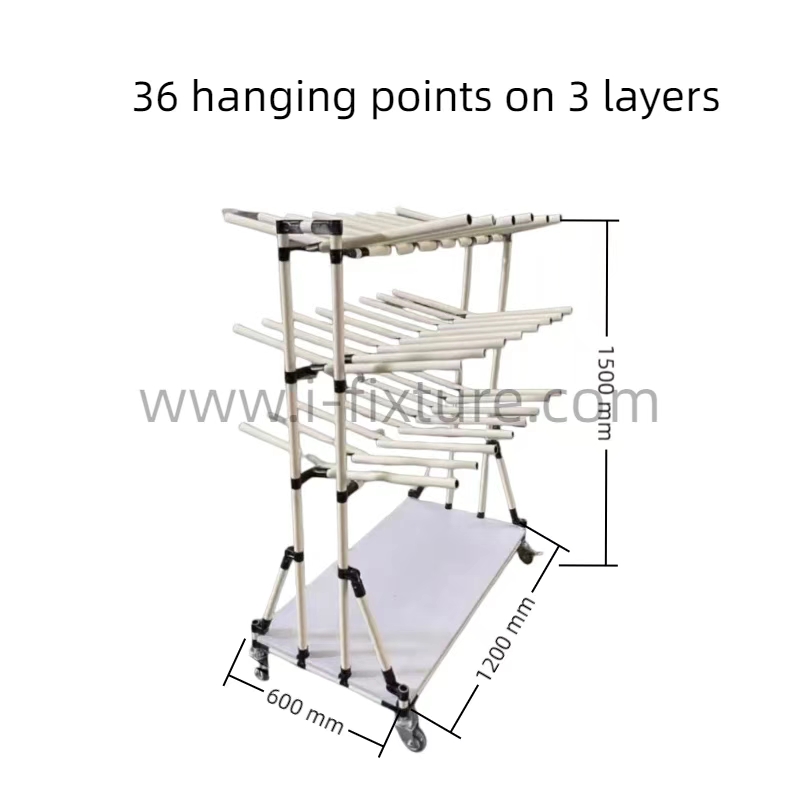

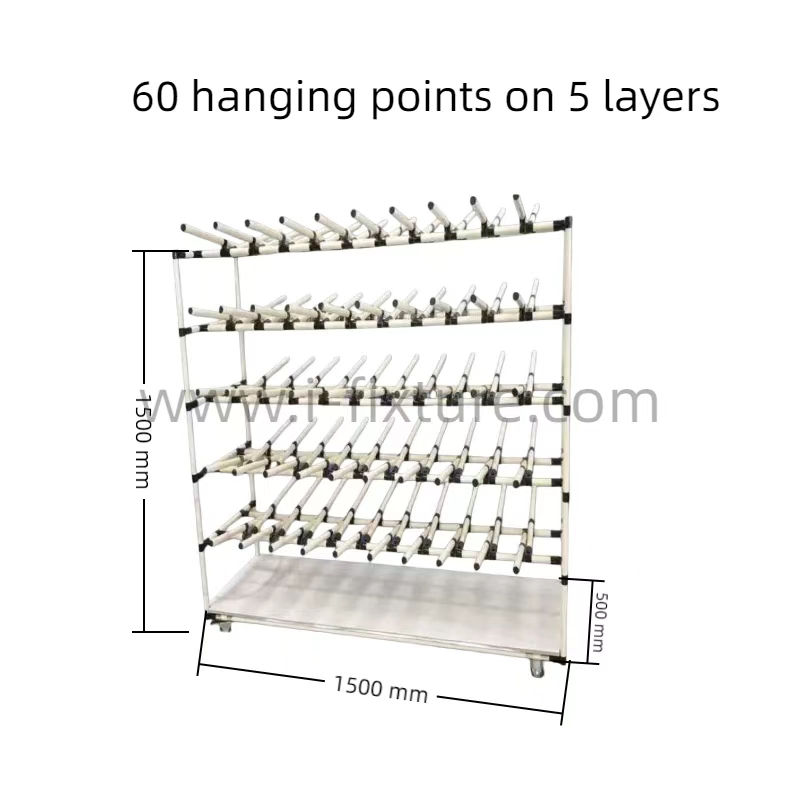

Custom Wire Rack for Modular Production Systems

Custom Wire Rack helps factories organize wire harness materials, cables, and tools efficiently. It supports flexible modular systems for modern manufacturing environments. The rack also helps create an ergonomic workspace for wire harness assembly.

Flexible Modular Structures

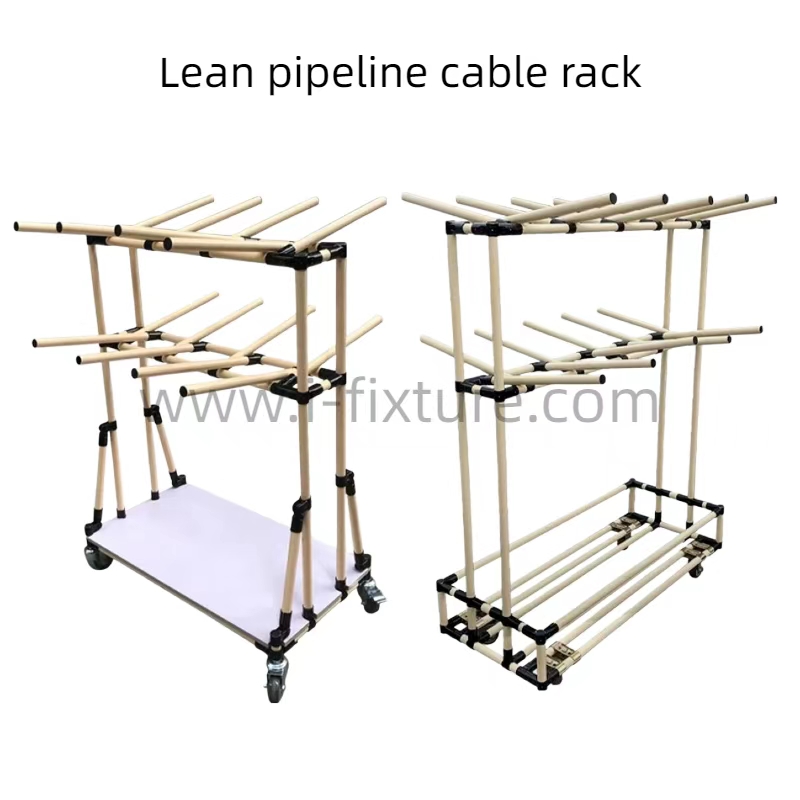

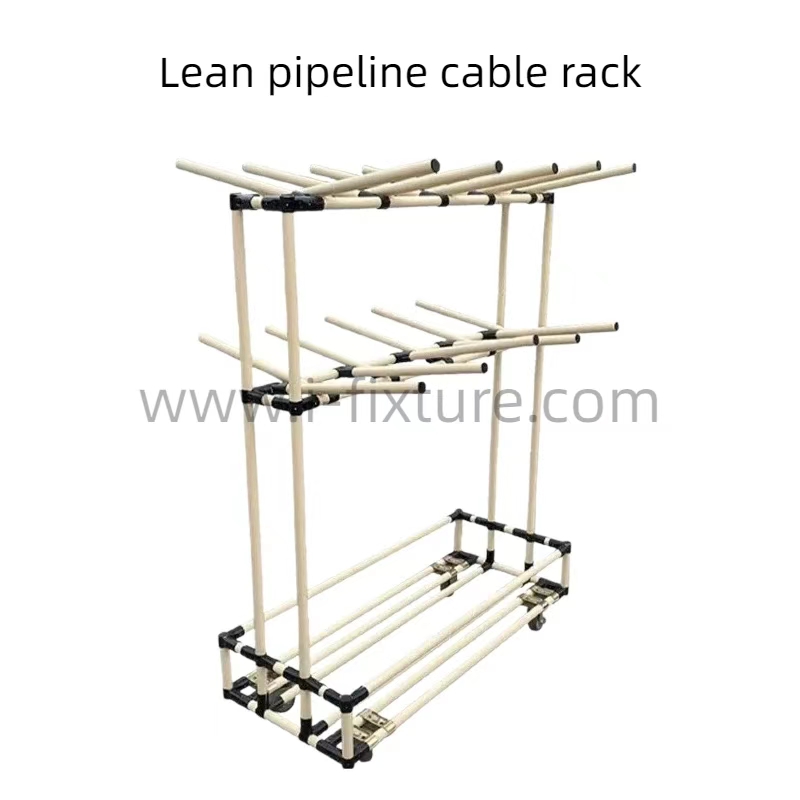

This mobile lean rack uses cold-rolled steel and premium components. It provides strong structural support for daily production.

The black electrophoretic finish creates a smooth and burr-free surface. It also improves corrosion resistance and service life.

The modular design allows quick installation and easy reconfiguration. Operators can adjust the rack to different workstation layouts.

These flexible modular structures work well in changing factory environments. They also support different production requirements.

Designed for Modern Production Lines

The rack is suitable for modern production lines. It helps operators keep tools, cables, and materials within easy reach.

The rack works with Wire Harness Fixtures and Automotive Wire Harness Fixtures. It also supports Wire Harness Tooling Fixtures, Tooling Fixtures, Wiring Fixtures, and Cabling Fixtures.

It can be integrated into different Wire Harness Assembly systems. This makes it suitable for both individual workstations and larger production areas.

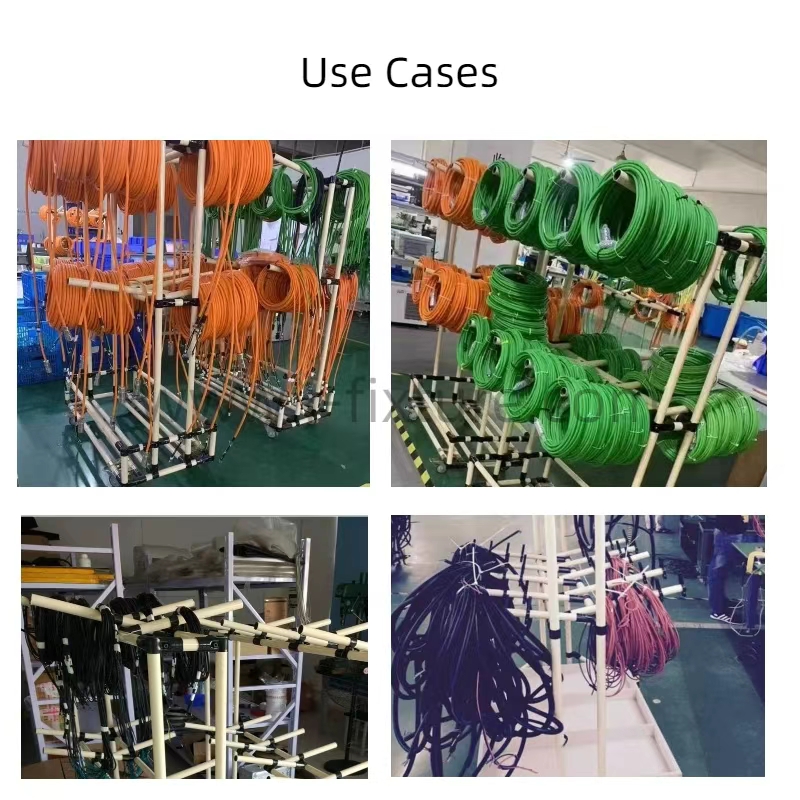

Applications in Wire Harness Assembly

This solution supports many wire harness processes, including:

• Terminal Processing
• Continuity Testing
• Positioning Fixtures
• Lifting Positioning
• Bending Fixtures
• Wire Routing
• Harness Retention

The rack helps operators organize materials clearly. It also supports a more ergonomic production area.

A well-organized workstation can help improve daily assembly efficiency. It can also help reduce unnecessary movement during production.

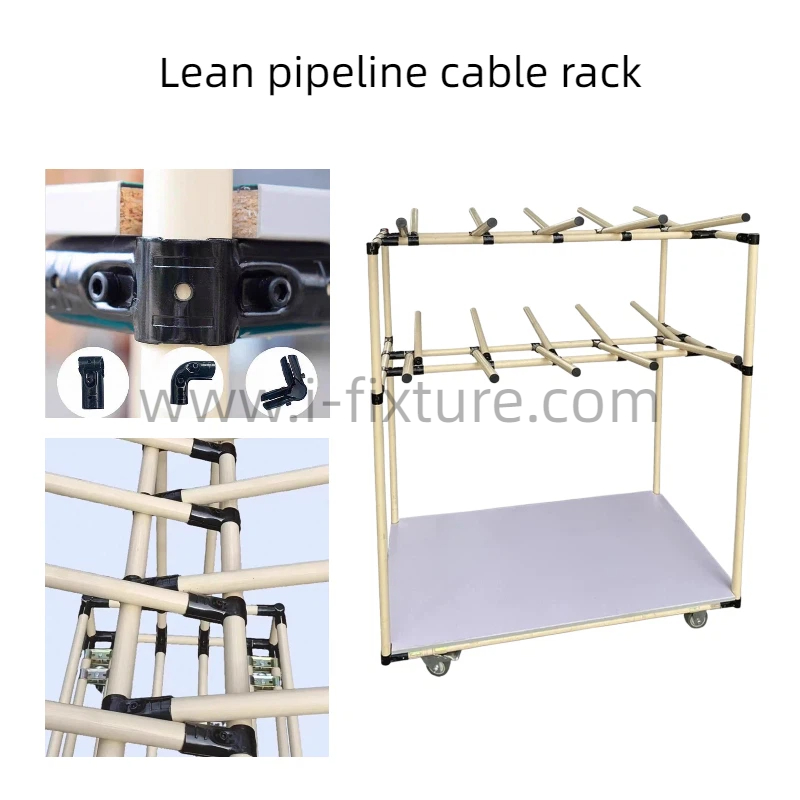

Adjustable Lean Pipe Components

The rack uses lean pipe joints with 0.8mm, 1.0mm, and 1.2mm thickness options. Customers can select the suitable structure for their application.

The lean pipes and joints can be combined with precision table components. This allows manufacturers to create different modular systems.

The structure can be adjusted according to workstation size and production requirements. It can also be adapted to different factory layouts.

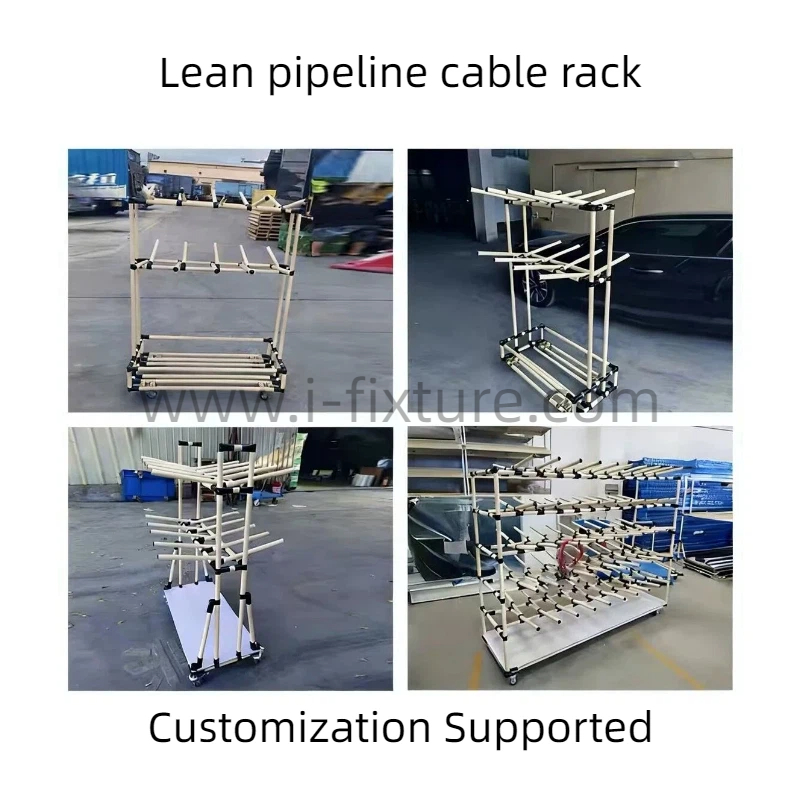

Custom Solutions from iFixture

iFixture provides customization services for different factory layouts. We can develop suitable modular structures for various manufacturing applications.

These solutions can support wire harness assembly, cable processing, material storage, and tooling organization.

As a professional wire harness fixture manufacturer, iFixture develops cable assembly fixture systems and wire harness tooling solutions.

Our solutions also include wire harness clamps, wire routing support, and harness retention systems.

Improve Wire Harness Assembly Efficiency

The rack helps manufacturers improve wire harness assembly efficiency. It also helps reduce wire harness assembly errors.

It provides an ergonomic solution for modern production lines. Operators can access tools and materials more easily during assembly.

The system can also be expanded or reconfigured when production requirements change.

Industries and Wire Harness Applications

The Custom Wire Rack supports many wire harness applications.

These include:

• Home Appliance Wire Harnesses
• Automotive Wire Harnesses
• Motorcycle Wire Harnesses
• Two-Wheeled Vehicle Wire Harnesses
• Engineering Machinery Wire Harnesses
• Industrial Equipment Wire Harnesses
• Medical Equipment Wire Harnesses
• Communication Equipment Wire Harnesses
• Consumer Electronics Wire Harnesses
• New Energy Industry Wire Harnesses
• Aerospace Wire Harnesses
• Rail Transit Wire Harnesses
• Marine and Offshore Engineering Wire Harnesses
• Security Equipment Wire Harnesses
• LED and Lighting Industry Wire Harnesses
• Special Equipment Wire Harnesses
