Grounding Terminal Busbar for Wire Harness Routing

Grounding Terminal Busbar supports stable wire routing and branch positioning on assembly boards. It also helps organize automotive harness branches, cornering, forking, and U-shaped routing. In addition, this Grounding Terminal Busbar creates clear routing points for repeatable harness assembly.

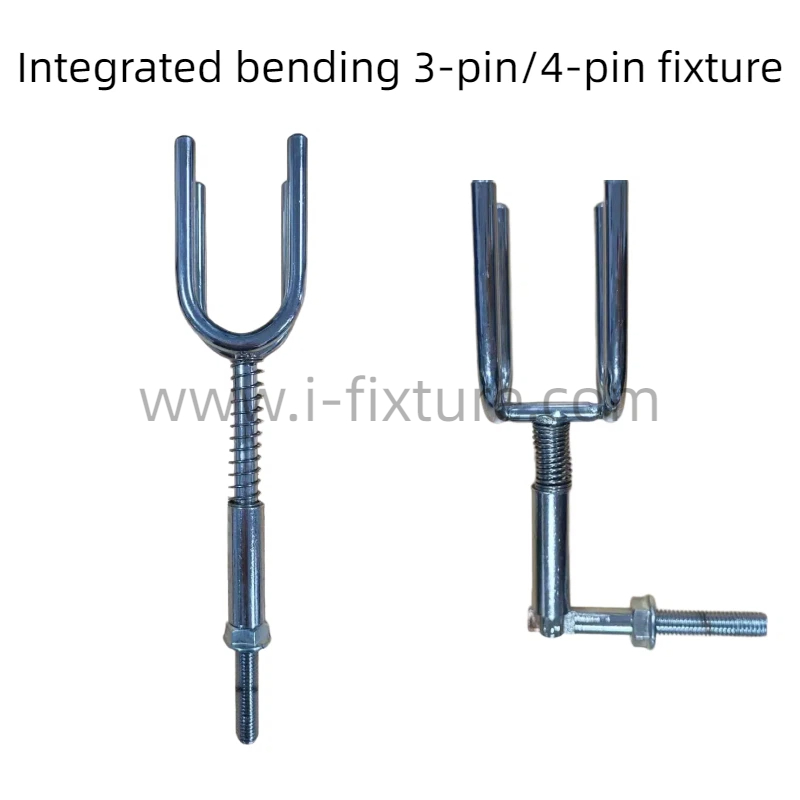

The 3-prong and 4-prong U-type design provides multiple routing positions. As a result, it works well with Wire Harness Fixtures, Wire Harness Forks, Wire Harness Clamps, and Automotive Wire Harness Fixtures. It also integrates easily into a wire harness assembly fixture for consistent routing operations.

U-Type Design and Material Options

Electroplated iron and stainless steel provide strong mechanical performance, making this busbar a reliable choice for demanding production environments and repeated assembly operations. As a China wire harness fixture manufacturer and China wire harness assembly tooling supplier, we offer products designed for reliable wire harness production. Zinc, nickel, and chrome plating options add surface protection and corrosion resistance, making the busbar suitable for use with automotive wire harness assembly tools and various assembly applications. Custom solutions can also be developed by a custom wire harness jig supplier to meet specific production requirements.

Models and Wire Harness Fixture Applications

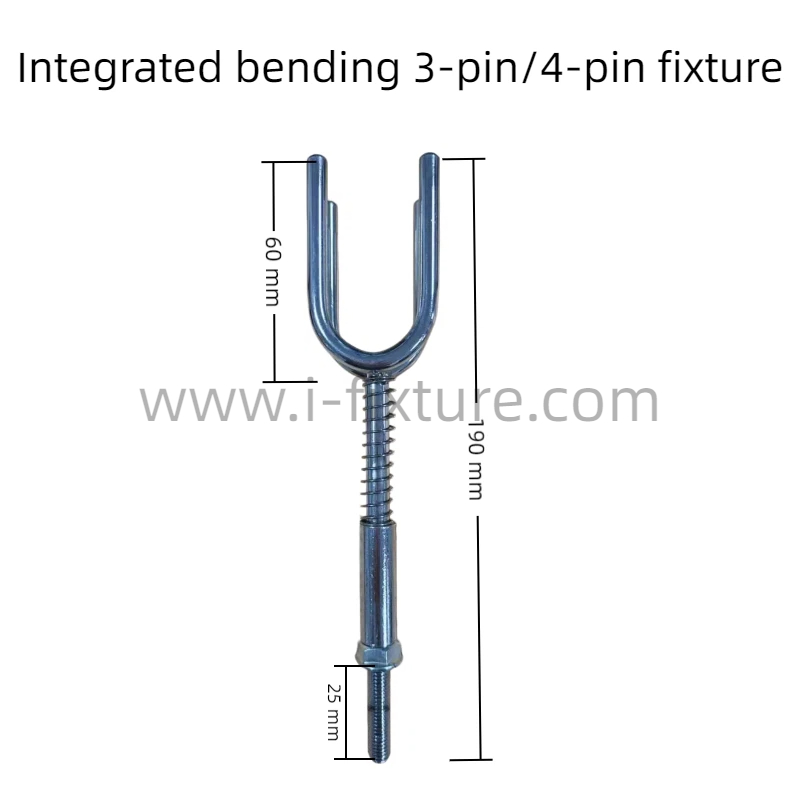

Available models include U10L10, U15L15, U20L20, U25L25, U30L30, U35L35, U40L40, U45L45, and U50*L50. Custom sizes can also meet different fixture layouts and harness routing requirements.

During production, the product supports Positioning Fixtures, Lifting Positioning, Bending Fixtures, and Wire Harness Assembly. Meanwhile, it works as a wire routing support for complex harness paths and branch points.

For example, manufacturers can use it for Automotive Wire Harnesses, Motorcycle Wire Harnesses, Home Appliance Wire Harnesses, Industrial Equipment Wire Harnesses, Consumer Electronics Wire Harnesses, New Energy Industry Wire Harnesses, Aerospace Wire Harnesses, Rail Transit Wire Harnesses, Medical Equipment Wire Harnesses, Communication Equipment Wire Harnesses, Marine and Offshore Engineering Wire Harnesses, Security Equipment Wire Harnesses, LED and Lighting Industry Wire Harnesses, and Special Equipment Wire Harnesses.

Wire Harness Poka Yoke and Assembly Benefits

Ultimately, this wire harness poka yoke solution helps standardize routing positions. It can also reduce wire harness assembly errors and support more efficient, repeatable harness production.
