IF111-Harness Positioning Rod | Wire Branch Fixture | iFixture

What is the Harness Positioning Rod?

The Harness Positioning Rod supports branch positioning during Wire Harness Assembly. It also helps operators position end-piece steel sleeves accurately. In addition, the rod works with a head fixture to create a stable positioning point.

What material and sizes are available?

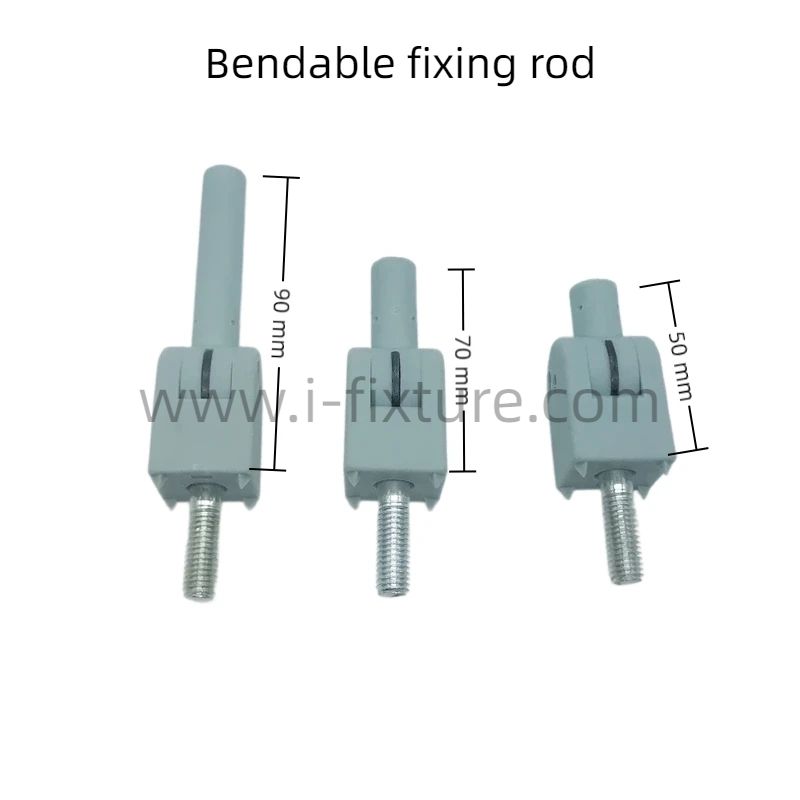

The rod uses durable ABS material with a zinc-plated threaded structure. It has a 28 mm screw thread. Meanwhile, three standard lengths are available: 50 mm, 70 mm, and 90 mm. Therefore, users can select the right length for different fixture layouts.

How does it support wire harness assembly?

The rod provides a practical positioning point for branch routing and end-piece positioning. It can also work with Positioning Fixtures, Bending Fixtures, Wire Harness Clamps, and other Tooling Fixtures. As a result, operators can control wire positions more consistently during assembly.

Where can it be used?

The rod supports Automotive Wire Harnesses, Motorcycle Wire Harnesses, New Energy Industry Wire Harnesses, Home Appliance Wire Harnesses, Industrial Equipment Wire Harnesses, Communication Equipment Wire Harnesses, and Consumer Electronics Wire Harnesses. It can also support customized modular fixture systems.

Why choose this positioning rod?

The Harness Positioning Rod offers a simple solution for branch positioning and fixture integration. Furthermore, its compact design supports flexible tooling layouts. For custom projects, users can discuss different dimensions and configurations with a China wire harness fixture manufacturer.
