China push mount harness tie manufacturer | Automotive Cable Tie

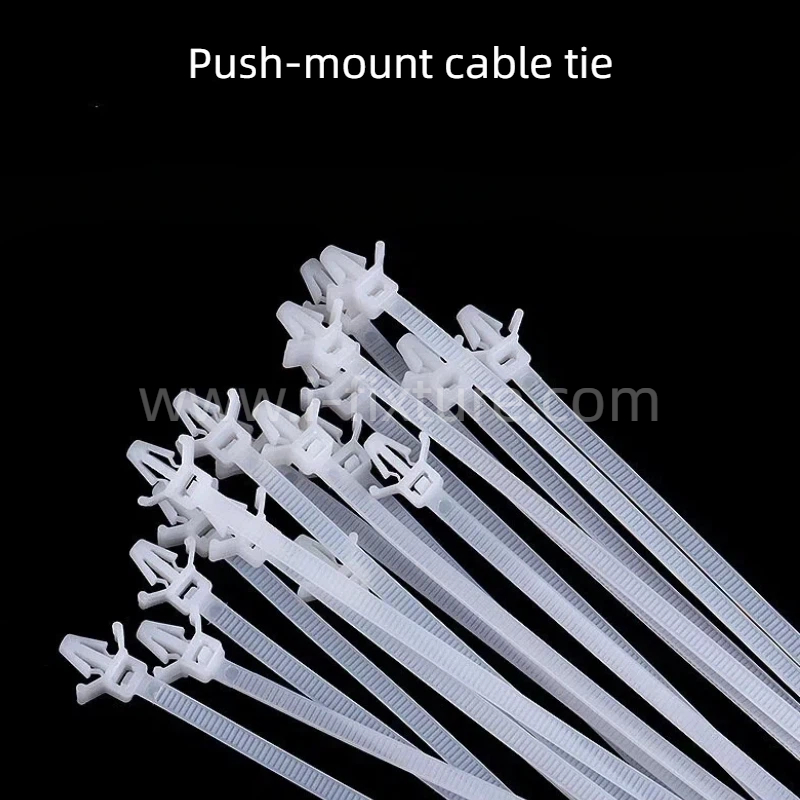

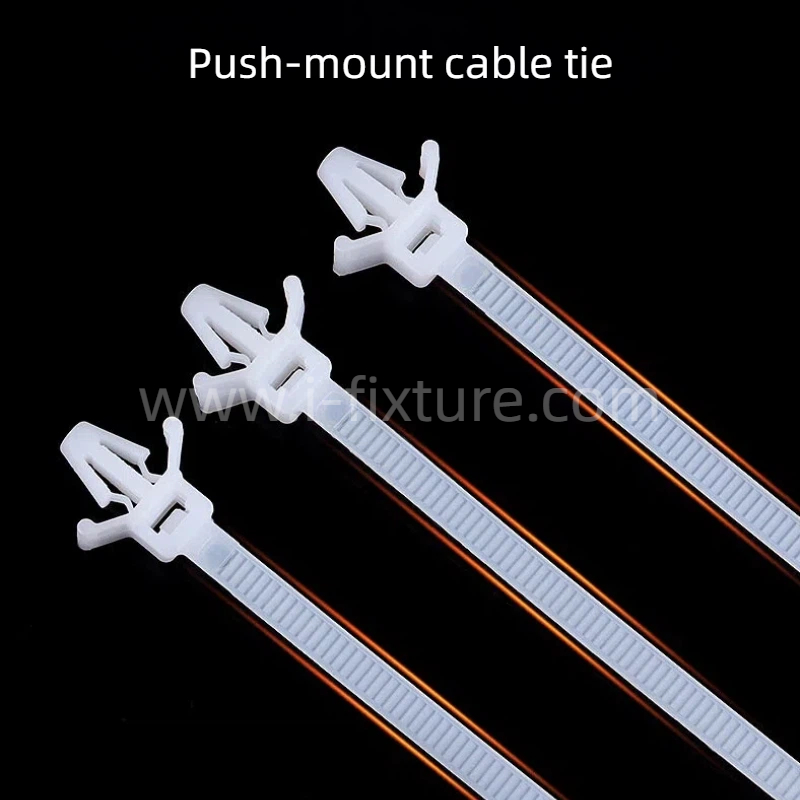

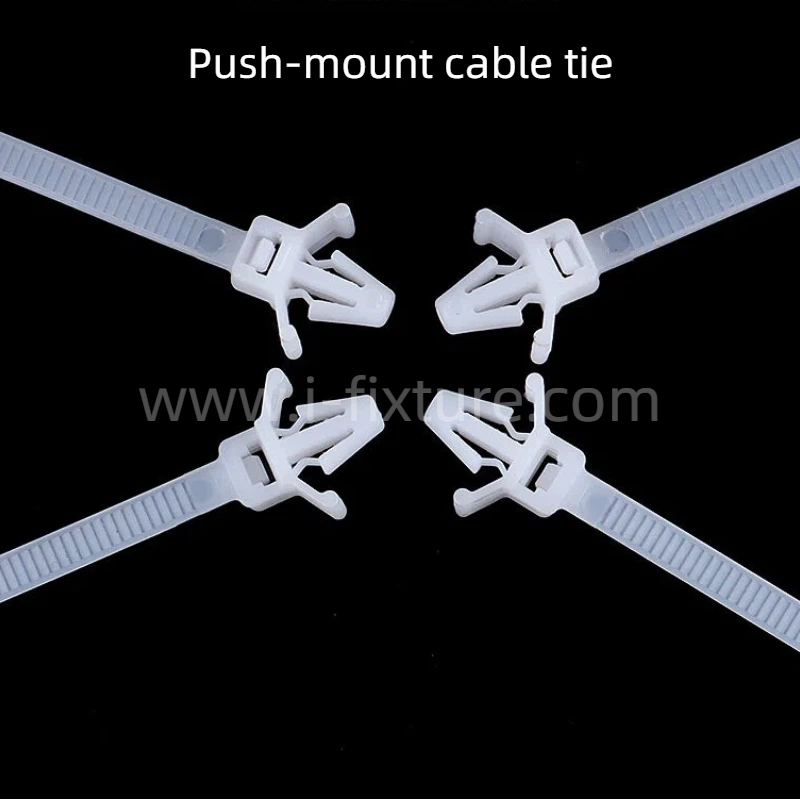

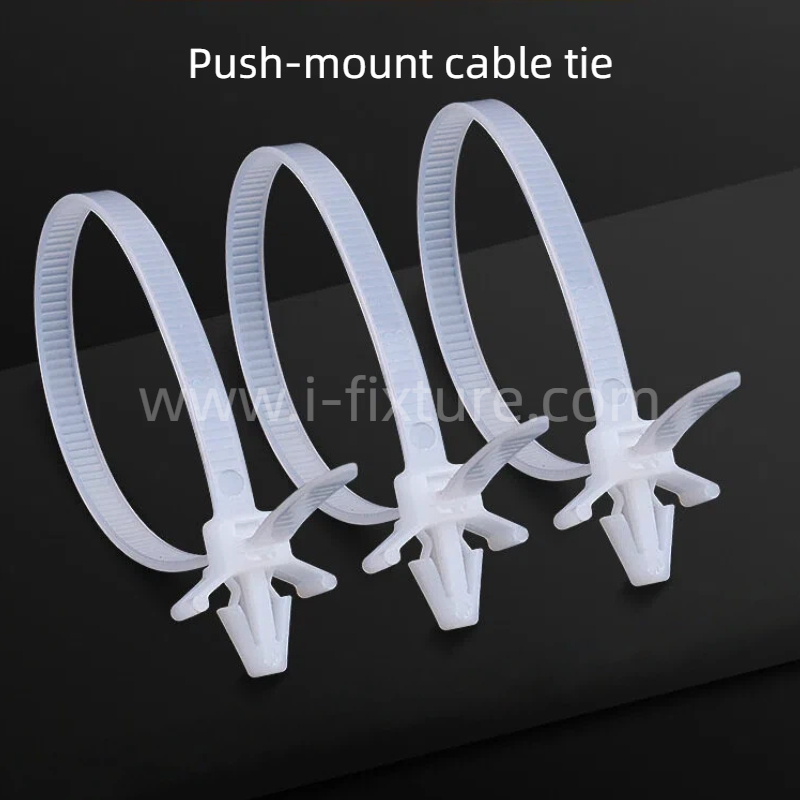

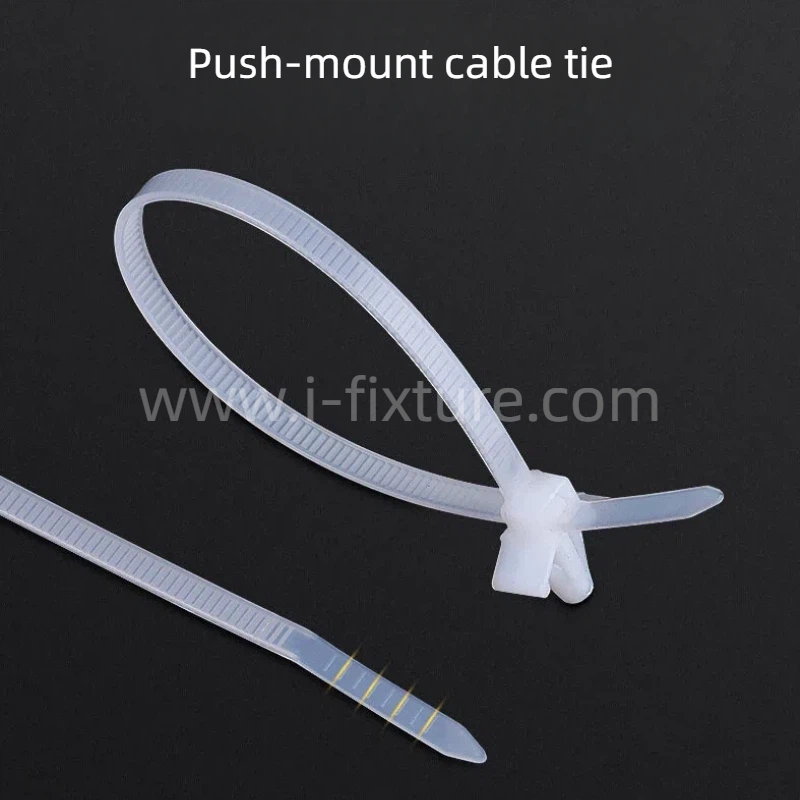

| Push-mount cable tie | |||
| X01 Arrowhead (Hole Dia. 4.2–5.1) 2.5×100 White | X01 Arrowhead (Hole Dia. 4.2–5.1) 2.5×100 Black | A02 Arrowhead (Hole Dia. 4.2–5.1) 2.5×130 White | A02 Arrowhead (Hole Dia. 4.2–5.1) 2.5×130 Black |
| X03 Wing-head tie (hole dia. 4.5–6) 3.6×150 White | X03 Wing-head tie (hole dia. 4.5–6) 3.6×150 Black | X04 Wing-head tie (hole dia. 4.5–6) 3.6×200 White | X04 Wing-head tie (hole dia. 4.5–6) 3.6×200 Black |
| X05 Wing-head (Hole Dia. 5.8-6.8) 4.8×120 White | X05 Wing-head (Hole Dia. 5.8-6.8) 4.8×120 Black | X06 Wing-head (Hole Dia. 5.8-6.8) 4.8×150 White | X06 Wing-head (Hole Dia. 5.8-6.8) 4.8×150 Black |
| X07 Arrowhead (Hole Dia. 5.8–7) 4.8×200 White | X07 Arrowhead (Hole Dia. 5.8–7) 4.8×200 Black | X08 Arrowhead (Hole Dia. 6.2–9) 7.2×150 White | X08 Arrowhead (Hole Dia. 6.2–9) 7.2×150 Black |
| X09 Push-mount (Hole Dia. 4.4-5.3) 3.6×150 White | X09 Push-mount (Hole Dia. 4.4-5.3) 3.6×150 Black | X10 Push-mount (Hole Dia. 6-7.3) 4.8×200 White | X10 Push-mount (Hole Dia. 6-7.3) 4.8×200 Black |
| X60 Arrowhead (Aperture 3.6–4.4) 3.3×130 White | X60 Arrowhead (Aperture 3.6–4.4) 3.3×130 Black | X16 Waist-Type Arrowhead (Aperture 5.1–6.5) 6×170 Black | X48 Arrowhead (Aperture 7.1–9.0) 8×220 Black |
| X71 Aircraft-style Tip (Aperture 7.8–8.2) 7.4×175 Black | 3×130 White, 2.5mm wide (500 pcs) | 3×130 White, 2.5mm wide (100 pcs) | 4×120 White, 3.2mm wide (500 pcs) |
| 4×120 White, 3.2mm wide (100 pcs) | 4×150 White, 3.6mm wide (500 pcs) | 4×150 White, 3.6mm wide (100 pcs) | 4×169 White, 3.6mm wide (500 pcs) |
| 4×169 White, 3.6mm wide (100 pcs) | 5×160 White, 4.8mm wide (500 pcs) | 5×160 White, 4.8mm wide (100 pcs) | 5×200 White, 4.8mm wide (500 pcs) |
| 5×200 White, 4.8mm wide (100 pcs) | 5×130 White, 4.8mm wide (100 pcs) | 5×130 White, 4.8mm wide (500 pcs) | 3×110 White, 2.5mm wide (500 pcs) |
| 3×110 White, 2.5mm wide (100 pcs) | 4×200 White, 3.6mm wide (500 pcs) | 4×200 White, 3.6mm wide (100 pcs) | |
Push Mount Harness Tie for Wire Harnesses
China push mount harness tie manufacturer supplying PA66 cable ties for automotive wire harness bundling and retention. This push mount harness tie combines cable bundling with panel fixing. It helps technicians secure wire harnesses during assembly. The integrated design also supports clean and organized cable routing.
PA66 Material and Reliable Performance
This automotive cable tie uses PA66 nylon. The material provides good strength for daily harness assembly. It also supports stable cable management in automotive applications. The working temperature range is -20°C to 80°C. In addition, the product has a V-2 flame retardant rating.
The tie has a thickness of 1.1–1.4 mm. It comes in black and natural white. The surface has no additional treatment. Each standard package contains 100 pieces.
Push-Mount Installation
The push-mount structure makes installation simple. First, place the wire harness in the required position. Next, tighten the cable tie around the harness. Then, push the mounting part into the matching panel hole. This process helps keep the harness in position.
As a result, the product can reduce the need for separate fixing clips. It also helps improve routing consistency on automotive production lines. Furthermore, the compact structure saves installation space.
Automotive Harness Bundling and Retention
This product supports automotive wire harness bundling and harness retention. It works well for cable routing and wire harness fixing. For example, manufacturers can use it on vehicle panels, brackets, supports, and other mounting points.
It suits passenger vehicles, commercial vehicles, electric vehicles, and industrial equipment. It also works for robotics, appliances, and general cable management. Therefore, it offers a practical solution for different harness assembly applications.
China Manufacturer and Supplier
As a China push mount harness tie manufacturer, iFixture supports OEMs, Tier 1 suppliers, and wire harness manufacturers. We also supply automotive cable ties and wire harness fixing solutions.
Moreover, we can support customized harness fixing requirements. Customers can provide drawings, samples, or application details. Our engineering team can then review the mounting structure and harness requirements. This approach helps customers select a suitable fixing solution for their production process.
